This Water Injection Check Valve provides stable operation and can be operated continuously.
It has high-temperature seals (Class 6 seal) that provide long-life sealing capability when the valve is not flowing water. Maintaining the Class 6 seal in this Water Injection Check Valve prevents the water system from evacuating during periods of inactivity.
When the water injection system is activated, all of the water lines will be full; this, in turn, will prevent exhaust temperature spreads that tend to trip the turbine.
- High temperature Metal-to-Metal internal seat
- High Temperature Operation
- -12 and -16 SAE ports

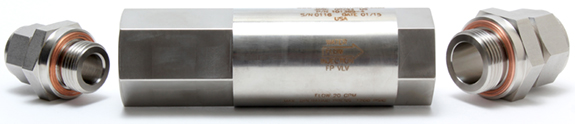

- Optional inlet/outlet fittings with Crush Seal Gasket eliminates O-ring
JASC’s redesigned F-Class water injection check valve now incorporates a metal-to-metal seat. This technology is well suited for use in systems which utilize liquid fuel and water purge.
With a continuous service rating of 600°F, using our crushed seal adapters, this valve’s adjustable cracking pressure, corrosion resistance and built-in stability for elimination of high frequency oscillation make it the perfect upgrade for 7FA, 9FA and 9E turbines.
Apply this simple upgrade to improve your turbine’s ability to transfer from gas to liquid fuel and back with this exciting new product.
